Ta'rif

Texnik parametrlar

PodshoSUCCUCT KIRISh

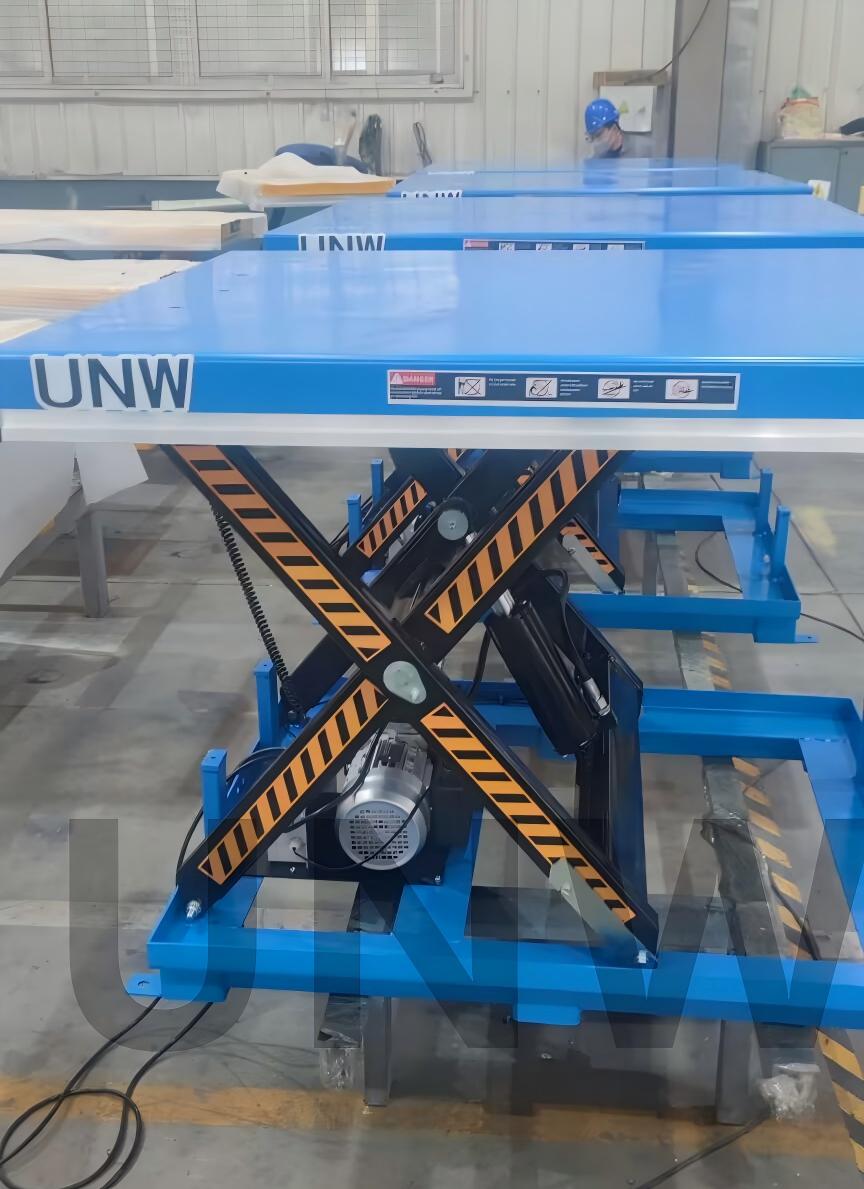

Scisor ko'tarish platformasiIshlab chiqarish, qurilish va boshqa korxonalar uchun og'ir narsalarni ko'tarish va tashish kabi turli sohalarda ishlatilishi mumkin bo'lgan ko'p qirrali va samarali uskunalardir.

Scisor ko'tarish platformasiyuk va shaxsni osongina va aniq ko'tarishi mumkin. Bu yuk mashinalarida yuklash va tushirish, materiallarni yig'ish yoki yig'ish liniyasi ustida ishlash kabi vazifalarni - vazifasini bajarishi shart.

Bundan tashqari,Scisor ko'tarish platformasishuningdek, xavfsizlik va barqarorlik ta'minlanadi. Xavfsizlik bo'yicha panjara, masalan, - slip platformalari va favqulodda vaziyatni to'xtatish tugmachalari operatorlar ishonchli va xavfsiz ishlashini ta'minlaydi.

Umuman olganda,Scisor ko'tarish platformasiIsh samaradorligi va xavfsizligini oshirish uchun har qanday biznes uchun eng muhim vositadir. Ushbu uskunadan foydalanib, korxonalar samaradorlikni oshirish va ish joyining shikastlanish xavfini kamaytirishi mumkin. Oddiy va oson - - ga - FAQAT Xususiyatlar ushbu uskunani sodda ish jarayonini yaratadi.

Hydraulic Scissor Lift Table made in China

Mahsulot parametri (spetsifikatsiya)

Specification of hydraulic scissor lift table

buy discount hydraulic table lift

Mahsulot xususiyatlari va dastur

Xususiyatlari:

1. Barqaror tuzilish.

2. Katta tonnage yukini bemalol ko'tarish.

3. Anti - chig'iluvchan qurilmasi va haddan tashqari yukni himoya qilish bilan jihozlangan.

hydraulic table lift quotation

Ishlab chiqarish ma'lumotlari

wholesale hydraulic table lift

hydraulic table lift in stock

Mahsulot malakai

American Standard Ansi / Asme va Evropa standartlari bilan En1570.

Sozlash mumkin.

warehouse lift quotation

Zavod ma'lumotlari:

Shandong Under Attiyiyaviy texnologiyasi Co., Ltd 10 {{3} dan ortiq gidravlik ko'tarish uskunalari, shu jumladan aqlli sirtli robot, assimilyum stakanlari vakuum stakanlari, sendvich paneli.

Bizning kompaniyamiz doimo dunyoning turli burchaklaridan ehtiyotkorlik bilan xizmat ko'rsatadi.

CE, Rohs, SGS, ISO va boshqalar.

Bizning fabrikamizga tashrif buyuring va siz bilan yaxshi biznes bor.

China warehouse lift factory

Issiq teglar: Scisor ko'tarish platformasi, Xitoy qaychigi platforma ishlab chiqaruvchilari, etkazib beruvchilar, zavod

Mahsulot parametri (spetsifikatsiya)

Model	Yuklash hajmi	O'z-o'zini balandlik	Maks platformasi balandligi	Platforma hajmi	Ko'tarish vaqti	Sof og'irlik
BLT101	1000 kg	205mm	1000mm	1300 × 820mm	20s~25s	160 kg
BLT102	1000 kg	205mm	1000mm	1600 × 1000mm	20s~25s	186kg
BLT103	1000 kg	240 mm	1300 mm	1700 × 850mm	30s~35s	200kg
BLT104	1000 kg	240 mm	1300 mm	1700 × 1000mm	30s~35s	210 kg
BLT105	1000 kg	240 mm	1300 mm	2000 × 850mm	30s~35s	212 kg
BLT106	1000 kg	240 mm	1300 mm	2000 × 1000mm	30s~35s	223 kg
BLT107	1000 kg	240 mm	1300 mm	1700 × 1500mm	30s~35s	365 kg
BLT108	1000 kg	240 mm	1300 mm	2000 × 1700mm	30s~35s	430 kg
BlT201	2000 kg	230mm	1000mm	1300 × 850mm	20s~25s	235 kg
BLT202	2000 kg	230mm	1050 mm	1600 × 1000mm	20s~25s	268 kg
BLT203	2000 kg	250 mm	1300 mm	1700 × 850mm	25s~35s	289 kg
BLT204	2000 kg	250 mm	1300 mm	1700 × 1000mm	25s~35s	300 kg
BLT205	2000 kg	250 mm	1300 mm	2000 × 850mm	25s~35s	300 kg
BLT206	2000 kg	250 mm	1300 mm	2000 × 1000mm	25s~35s	315 kg
BLT207	2000 kg	250 mm	1400 mm	1700 × 1500mm	25s~35s	415 kg
BLT208	2000 kg	250 mm	1400 mm	2000 × 1800mm	25s~35s	500 kg
BLT401	4000 kg	240 mm	1050 mm	1700 × 1200mm	30s~40s	375 kg
BLT402	4000 kg	240 mm	1050 mm	2000 × 1200mm	30s~40s	405 kg
BLT403	4000 kg	300 mm	1400 mm	2000 × 1000mm	35s~40s	470kg
BLT404	4000 kg	300 mm	1400 mm	2000 × 1200mm	35s~40s	490 kg
BLT405	4000 kg	300 mm	1400 mm	2200 × 1000mm	35s~40s	480 kg
BLT406	4000 kg	300 mm	1400 mm	2200 × 1200mm	35s~40s	505 kg
BLT407	4000 kg	350 mm	1300 mm	1700 × 1500mm	35s~40s	570kg
BLT408	4000 kg	350 mm	1300 mm	2200 × 1800mm	35s~40s	655 kg
BVL101	1000 kg	180 mm	770mm	610x916mm	15s-20s	115kg
BVL050	500 kg	180 mm	950mm	610x916mm	17s-22s	160 kg
BLP050	500 kg	200mm	1000mm	1200x600mm	20s-25s	120 kg
BLP051	500 kg	200mm	1000mm	1200x800mm	20s-25s	130 kg
BLP05L	500 kg	200mm	1000mm	2000x800mm	20s-25s	240 kg
Ebl100	1000 kg	190 mm	1010mm	1300x800mm	20s-25s	160 kg
Ebl200	2000 kg	190 mm	1010mm	1300x800mm	20s-25s	235 kg
Ebl300	3000 kg	220mm	1010mm	1300x800mm	20s-25s	350 kg
Bhd100	1000 kg	305mm	1780mm	1300x820mm	35s-45s	210 kg
Bhd200	2000 kg	350 mm	1780mm	1300x850mm	35s-45s	295 kg
Bhd400	4000 kg	400 mm	2050mm	1700x1200mm	55s-65s	520 kg
Iept200	2000 kg	205mm	1000mm	2500x820mm	20s-25s	300 kg
Iep400	4000 kg	230mm	1000mm	2500x850mm	20s-25s	320 kg
Iept800	8000 kg	240 mm	1050 mm	3000x1200mm	20s-25s	370kg
BHT100	1000 kg	470mm	3000 mm	1700x1000mm	35s-45s	450 kg
BHT200	2000 kg	560mm	3000 mm	1700x1000mm	50s-60s	750 kg
BhF40	400 kg	600 mm	4140 mm	1700x1000mm	30s-40s	800 kg
BhF80	800 kg	706mm	4210mm	1700x1000mm	70s-80s	858kg
BHF200	2000 kg	850 mm	4200mm	2500x1500mm	70s-80s	900 kg
